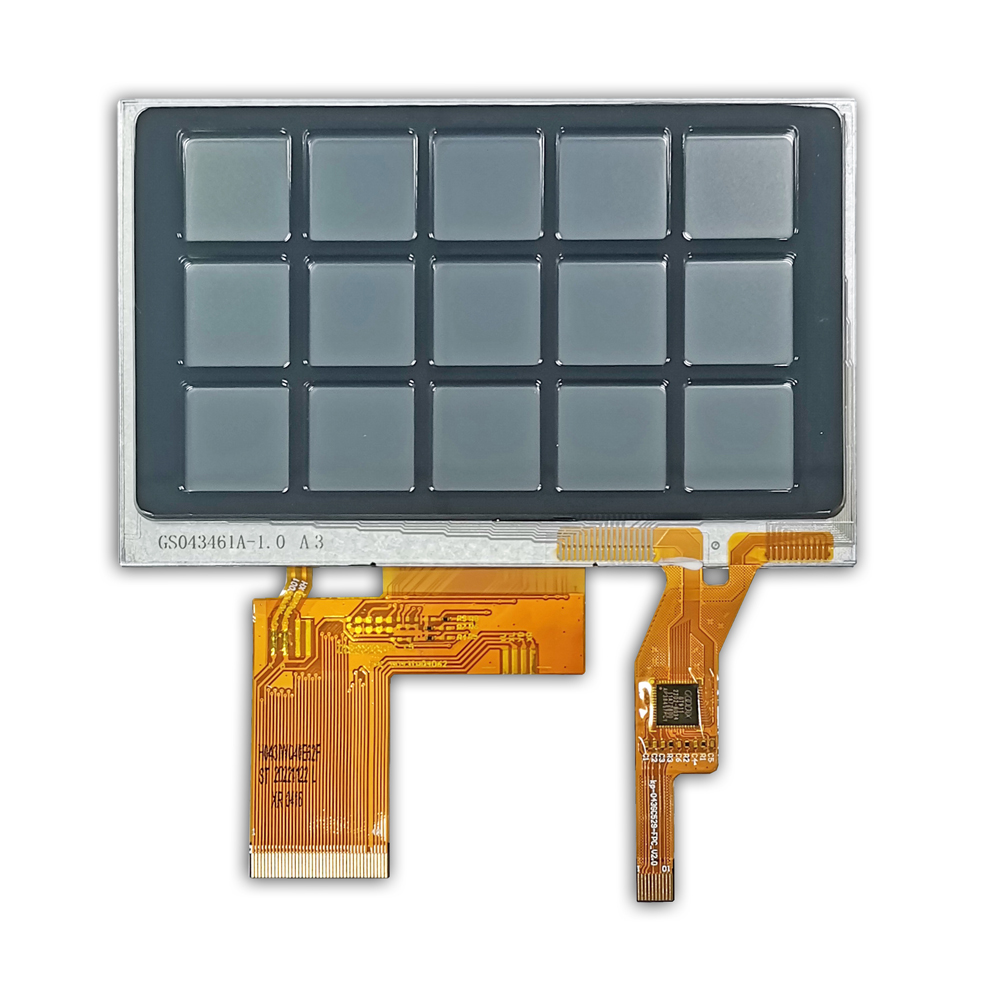

Display Format

480 (RGB) × 272

Interface

24-bit RGB

Color Depth

16.7M

Technology type

a-Si

Display Spec.

0.198 x 0.198

Display Mode

Normally White

Driver IC

ST7282

Surface Treatment

HC

Viewing Direction

12 O’clock

Gray Viewing Direction

6 O’clock

LCM+CTP (W x H x D) (mm)

105.4*67.15*5.27

Active Area(mm)

95.04 x 53.86

With /Without TSP

With CTP

Weight (g)

TBD

LED Numbers

7 LEDs

1

LEDK

Backlight LED Cathode

2

LEDA

Backlight LED Anode.

3

GND

System Ground

4

VDD

Power supply for logic operation

5~12

R0~R7

Data bus

13~20

G0~G7

Data bus

21~28

B0~B7

Data bus

29

GND

System Ground

30

DCLK

Pixel clock signal

31

DISP

Display on/off control

32

HSYNC

Horizontal Sync signal

33

VSYNC

Vertical Sync signal

34

DE

Data Enable

35

NC

No connect

36

GND

System Ground

37

NC/XR

TP pin XR

38

NC/YD

TP pin YD

39

NC/XL

TP pin XL

40

NC/YU

TP pin YU

1

GND

Ground

2

VDD

Power supply

3

SCL

I2C clock input   2.8V

4

NC

/

5

SDA

I2C data input and output  2.8V

6

NC

/

7

RST

Reset Pin for CTP   2.8V

8

NC

/

9

INT

Interrupt request to the host  2.8V

10

GND

Ground
